Primary Features
Mounting Bolt Pattern: 10.0" x 4.50"
Recommended Battery: 650CCA Minimum for Winching
Waterproofing: IP68 Rating
5' battery power cables
Sliding ring gear clutch
Rated Line Pull: 12,000Lbs (5,454kgs) Single Line
Brake: Automatic Out-Of-Drum
Gear Ratio: 216:1
Weight: 76.0Lbs (30.4Kgs)
Overall Dimensions: (L x W x H) 22.3" x 5.4" x 9.4"
3-stage planetary gearbox
5-Year Electrical / Limited Lifetime Mechanical Warranty
3/8" x 98.5' synthetic rope
Fairlead: Hawse
7HP series wound motor

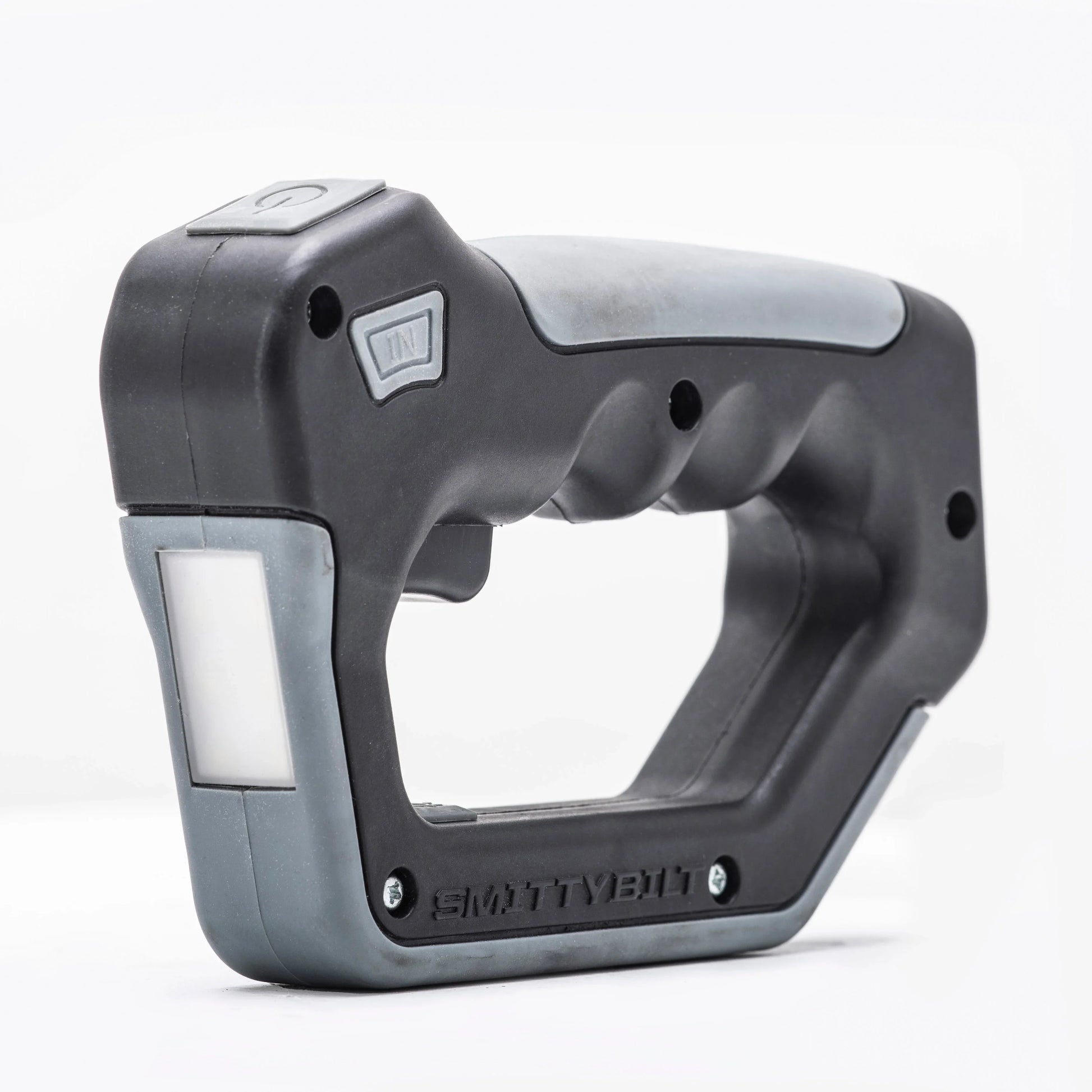

Wireless remote with 10' charging/wired cord
